LUMO is a state-of-the-art high density fNIRS device which revolutionizes functional brain imaging. It merges the advantages of using multi-distance diffuse optical tomography (DOT) technology with being fiberless, wearable, and compact to provide quick, whole head imaging with HD-DOT technology and very high data quality.
Spatial resolution comparable with fMRI
LUMO dramatically improves spatial resolution and experimental repeatability, ensuring consistent results across every session.
Outstanding comfort and data quality
Stop fighting with fibre bundles, bulky cables and individual optodes. LUMO's compact headgear can be put on and set up in under 60 seconds.
Unprecedented modularity and flexibility
LUMO's unique modular architecture allows you to seamlessly expand your system as your research evolves.

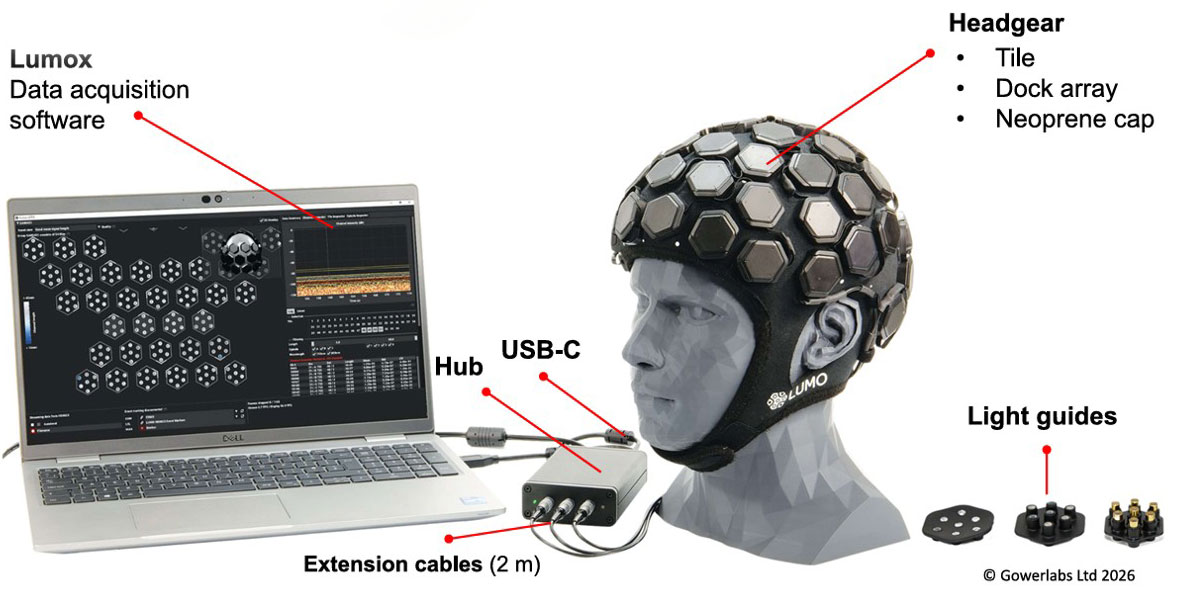

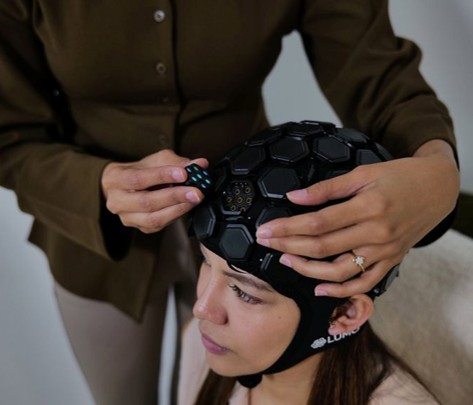

LUMO’s ground-breaking modular design features independent hexagonal sensor tiles that can be easily inserted into any cap at any location, to form a high-density DOT array.

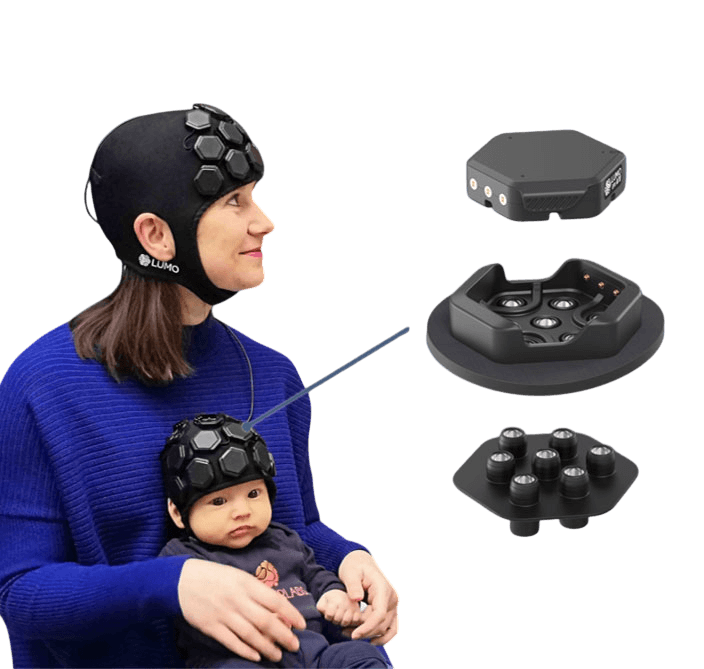

LIGHT GUIDES
Inserted into the underside of each dock to comb through hair
TILES

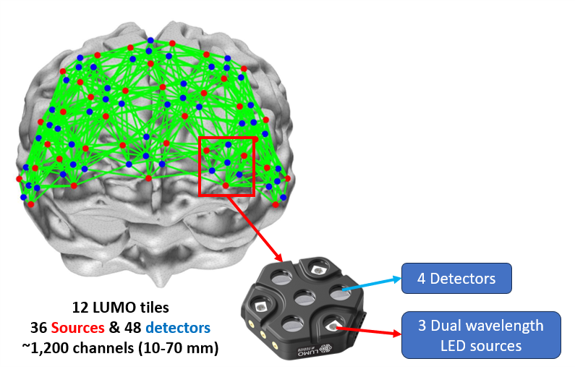

The heart of LUMO - the sensor modules, each housing 3 dual-wavelength sources and 4 detectors
DOCKS
Secured to the cap in your chosen configuration, connected together by low-profile cabling
The LUMO tile, a sensor module with 3 dual-wavelength sources and 4 detectors
An array of docks, fixed to the headgear in your chosen configuration, provide power and data transfer
Light guides to comb through hair, providing optimum optical coupling whilst maximising comfort

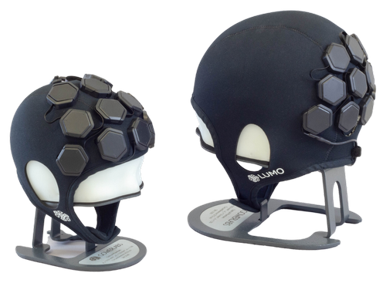

HEADGEAR

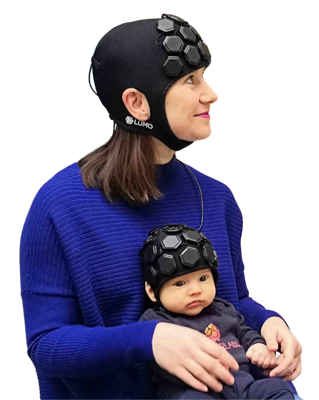

Headbands and caps for all ages, from 3 to 54 docks
Monitor channel quality and channel count in real time. Filter noisy channels with the click of a button, and easily export files for analysis.
